4" X 2" Inch Rigid Caster - Phenolic Wheel - 800 Lbs Capacity

Discover the robust functionality of our 4" X 2" Inch Rigid Caster with a Phenolic Wheel, designed to seamlessly handle up to 800 lbs. A hallmark in medium-duty applications, this caster is known for its exceptional quality and durability.

Crafted from 1/4" thick cold-rolled steel, it is engineered for optimal mobility and resilience to withstand the rigors typical in medium-duty environments. The caster features a double ball raceway for smooth movement and comes with a standard 5/8" nut & kingpin, with options for a rivet kingpin or a kingpinless version.

Technical Specs

• Wheel Material: Phenolic
• Wheel Diameter: 4 inches
• Wheel Tread Width: 2 inches
• Load Capacity: 800 lbs each

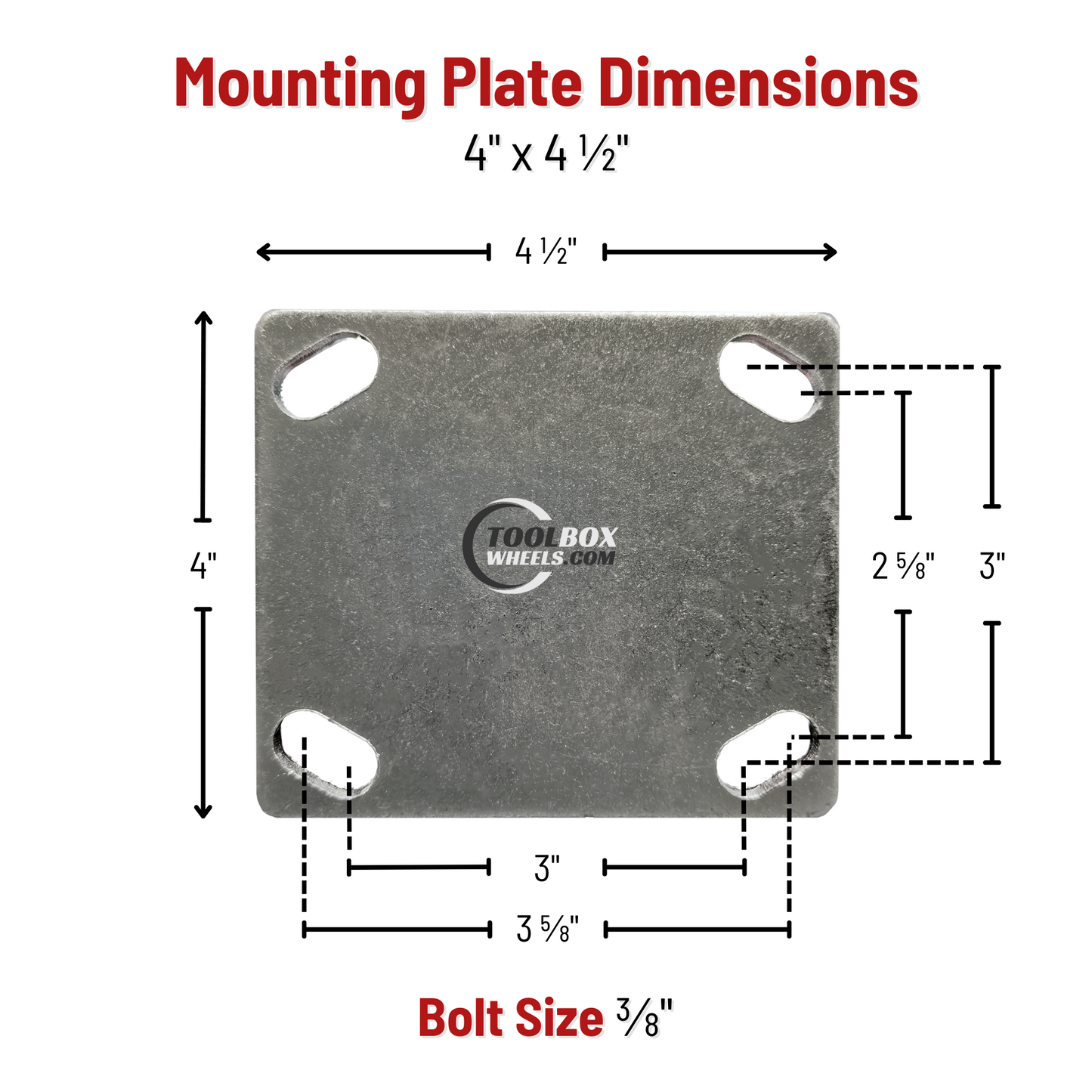

• Top Plate Size: 4" x 4-1/2"
• Bolt Hole Spacing: 2-5/8" x 3-5/8" (slotted to 3" x 3")
• Wheel Durometer: 90 Shore D (±5)
• Mounting Bolt Size: 3/8 inch
• Overall Height: 5-5/8 inches
• Bearing Type: Roller Bearing (other options available)
• Wheel Color: Black
• Temperature Range: -50°F to 250°F
• Caster Bracket Material: Zinc Plated
• Grease Zerk in Raceway: Yes
• Axle: Zerk Axle

Key Features

• High Load Capacity: Capable of supporting up to 800 lbs, ideal for various medium-duty uses.
• Durable Construction: Made from 1/4" thick cold-rolled steel for lasting use.
• Effortless Mobility: Equipped with Double Ball raceways for fluid motion.
• Versatility: Available with different kingpin options to suit various requirements.
• OEM Preferred Series: Part of a series widely preferred by original equipment manufacturers.
• NSF Listed: Majority of this series and wheels are certified by the National Sanitation Foundation.
• RoHS Compliant: Adherence to the Restriction of Hazardous Substances directive.
• Easy Maintenance: Grease fitting in raceway & axle for regular maintenance.
• Zinc Plated: Rust and corrosion-resistant finish for enhanced durability.
• Phenolic Wheel: Strong as steel, non-marking, and highly resistant to chemicals.

Popular Applications

Perfect for a wide range of industries including industrial, warehousing, hospitality, institutional, food service, food processing, and retail display, these casters are commonly used in carts, trucks, dollies, racks, and equipment for medium-duty applications.

Product Code: HQ2040R-PL1-PHR

Order today for fast delivery and competitive prices.
