8" x 2" Phenolic Caster Set | 2 Total Lock & 2 Swivel
8" x 2" Phenolic Caster Set | 2 Total Lock & 2 Swivel
Regular price
$122.99 USD
Regular price
Sale price
$122.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

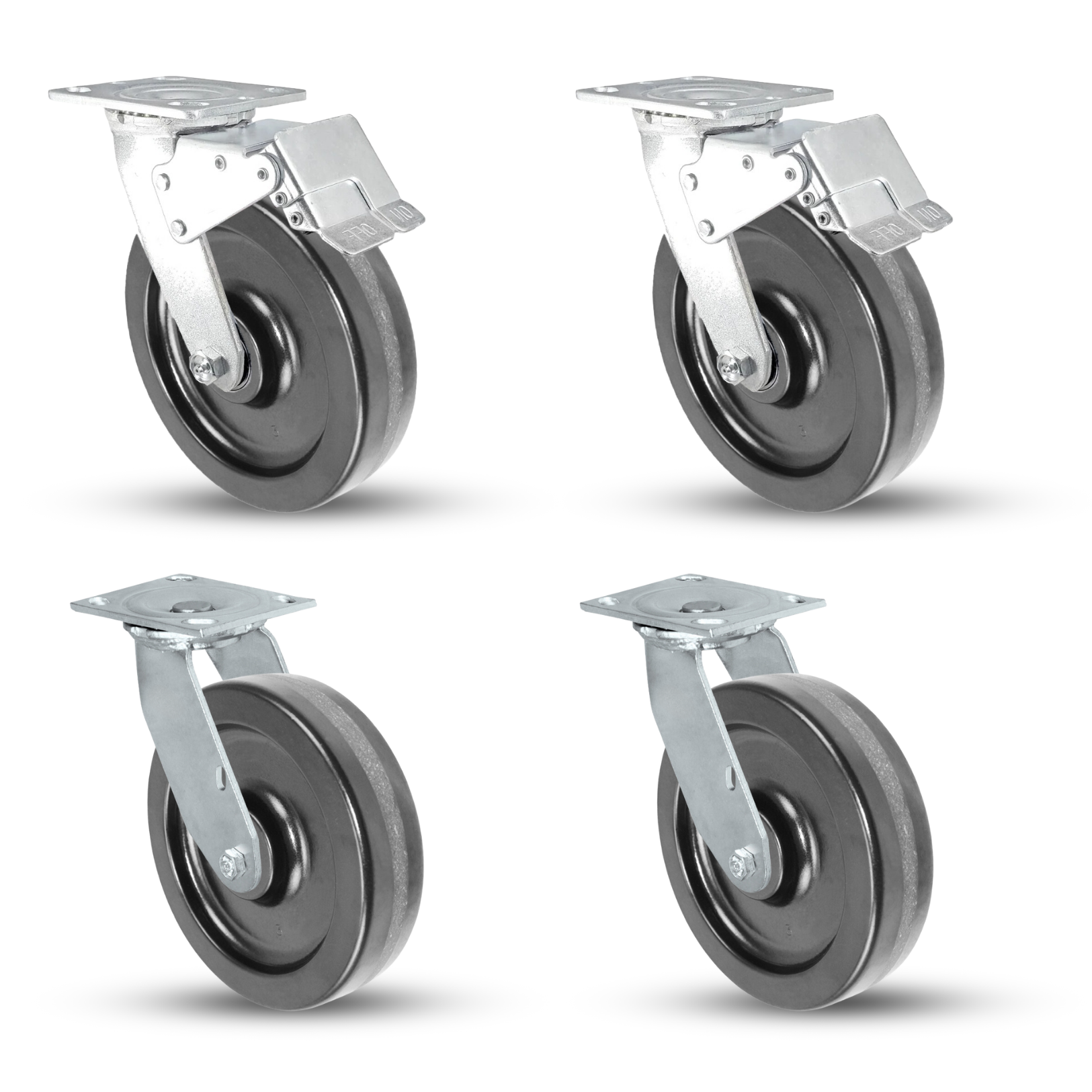

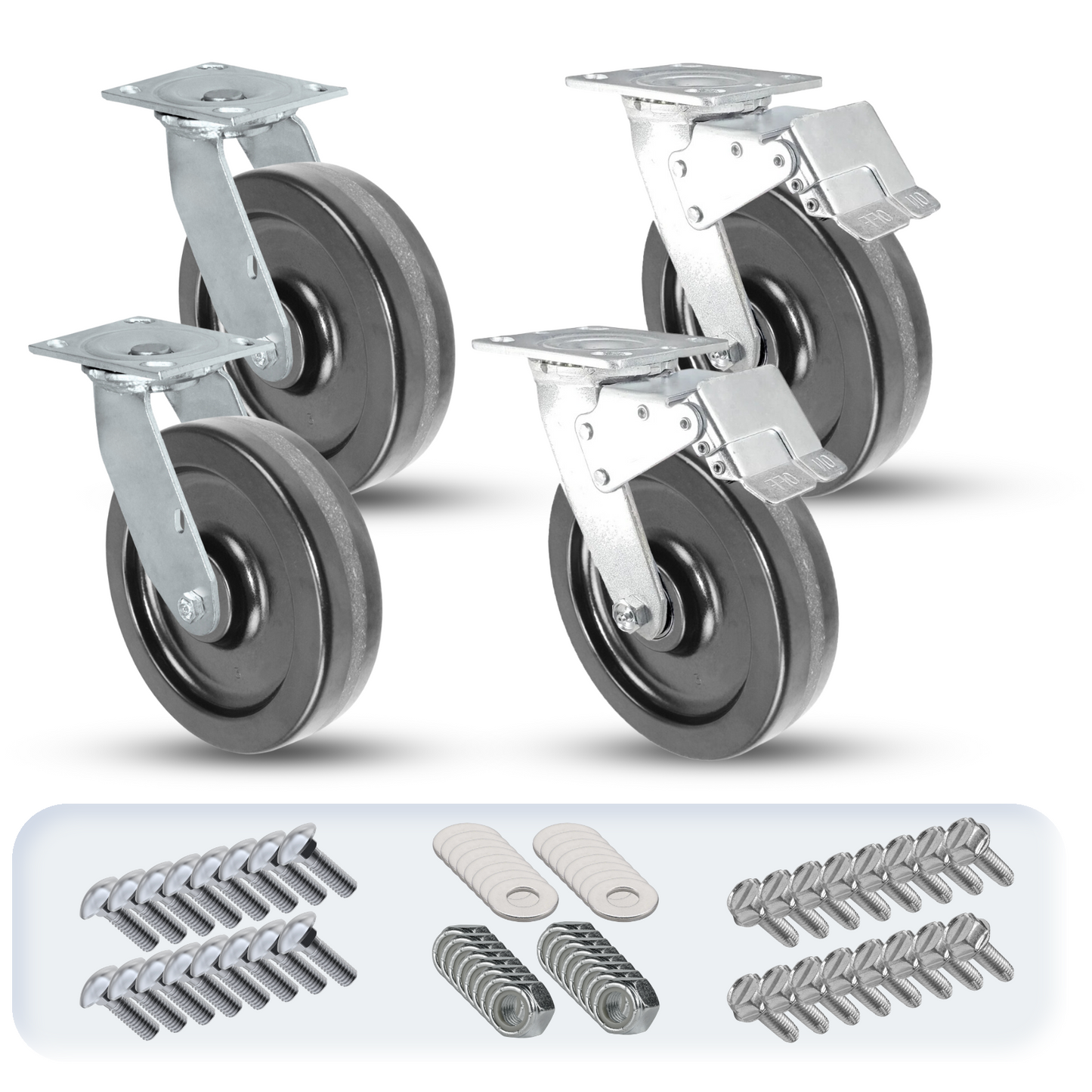

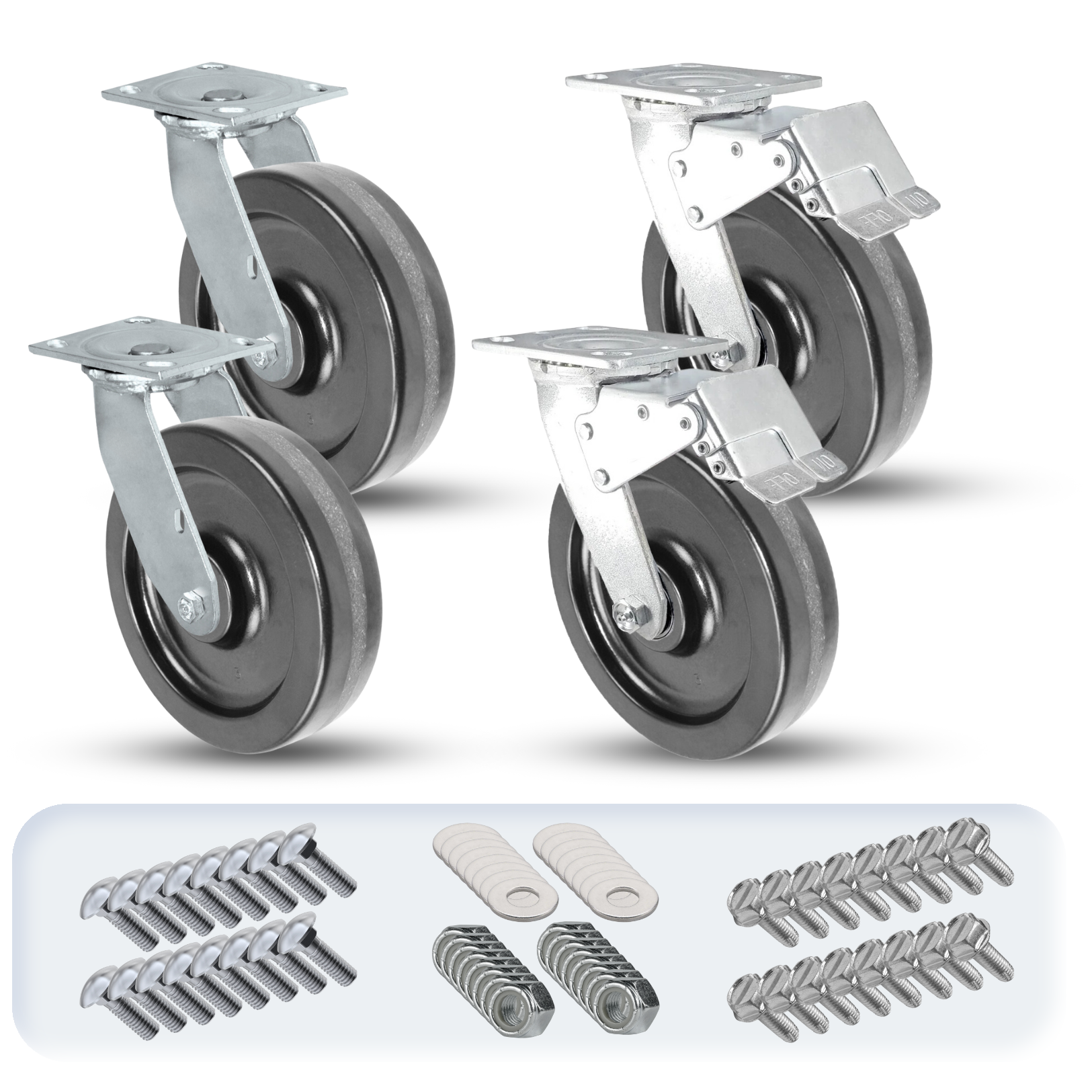

8" x 2" Caster Set of 4 - 2 Total Lock & 2 Swivels - Phenolic Wheel - 4,000 Lbs Capacity
Enhance your equipment's mobility with our 8-inch by 2-inch caster set, a top choice in our Medium Duty 'HD' Series. Known for its exceptional quality and durability, this set includes two total lock casters and two standard swivels, all boasting a substantial 4,000 lbs total capacity. Ideal for a variety of medium-duty applications, they offer both functionality and value, complemented by fast delivery and competitive pricing.
Technical Specifications:
| Wheel Material | Phenolic |
|---|---|
| Wheel Diameter | 8 inches |
| Wheel Tread Width | 2 inches |
| Load Capacity | 1000 lbs each | 4,000 lbs per set of 4 |
| Top Plate Size | 4" x 4-1/2" |
| Bolt Hole Spacing | 2-5/8" x 3-5/8" (Slotted to 3" x 3") |
| Swivel Radius | 6-1/4 inches (Increases with certain brake options) |
| Wheel Durometer | 90 SHORE D (±/-5) |
| Mounting Bolt Size | 3/8 inch |
| Overall Height | 9-1/2 inches |
| Bearing Type | Roller Bearing or Precision Bearing |
| Wheel Color | Black |
| Temperature Range | -50°F – 250°F |
| Caster Bracket Material | Zinc Plated Steel |
| Grease Zerk | Yes |
| Axle | Zerk Axle |
Product Overview:
- Robust Construction: Built from 1/4" thick cold-rolled steel, designed to withstand the rigors of medium-duty applications.
- Flexible Mobility: Features two total lock casters for secure stopping, and two standard swivel casters for smooth movement.
- Versatile Applications: Perfect for carts, trucks, dollies, racks, and equipment in industries such as warehousing, hospitality, institutional, food service, and retail.
- Customization Options: Available in rivet kingpin and kingpinless versions to meet specific needs.
Key Features:
- High Load Capacity: Each caster can support 1000 lbs, handling heavy loads with ease.
- Phenolic Wheels: Offer durability and floor protection, ideal for various settings.
- Enhanced Control: Brake mechanism provides stability and safety during use.
- Durable Design: Double ball raceways ensure smooth operation and longevity.
- OEM Preferred Series: Trusted quality and performance in industrial applications.
- NSF Listed: Majority of the series and wheels meet NSF certification standards.
- RoHS Compliant: Adheres to environmental and health safety standards.
- Total Lock Casters Available: Option for complete immobilization and stability.
- Grease Fitting in Raceway & Axle: Simplifies maintenance and extends caster life.
- Zinc Plated: Resistance to rust and corrosion for increased durability.
- Phenolic Wheel: As strong as steel, non-marking, and resistant to chemicals.
Product Code: HQ-2180-PL1-PHR-2TL2S
