8" x 2" Phenolic Caster Set | 4 Swivels with Brakes
8" x 2" Phenolic Caster Set | 4 Swivels with Brakes
Regular price
$139.99 USD
Regular price
Sale price
$139.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

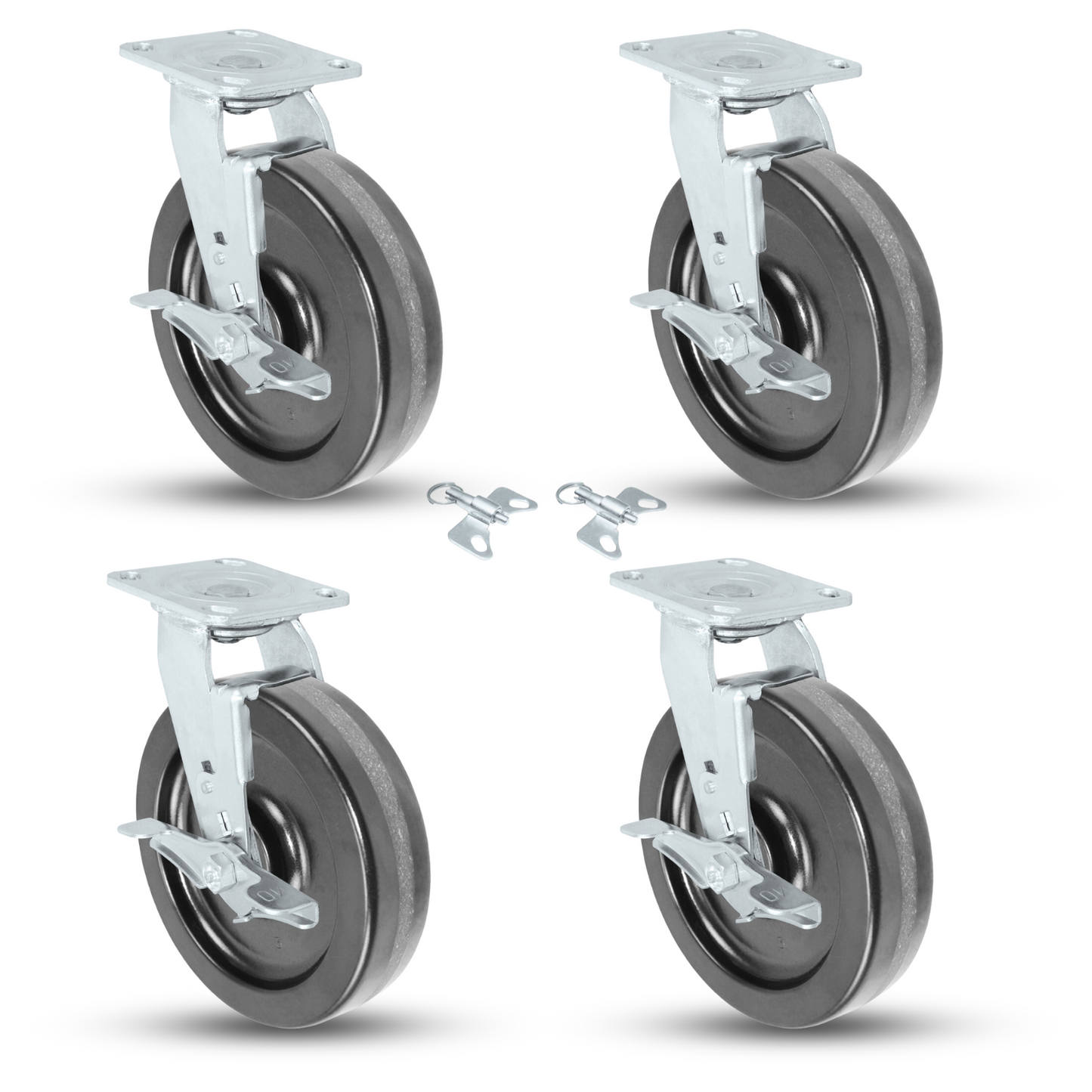

8" x 2" Swivel Casters with Brakes - Set of 4 - Phenolic Wheel - 4,000 Lbs Capacity
Introducing our Medium Duty 'HD' Series 8-inch by 2-inch Swivel Casters with Brakes, a top choice in a wide array of industries for their outstanding quality, functionality, and durability. These casters are designed to excel in medium-duty applications, offering a remarkable 4,000 lbs total capacity per set of four. Ideal for quick, reliable mobility solutions, we ensure fast delivery and competitive pricing.
Technical Specifications:
| Wheel Material | Phenolic |
|---|---|
| Wheel Diameter | 8 inches |
| Wheel Tread Width | 2 inches |
| Load Capacity | 1000 lbs each | 4,000 lbs per set of 4 |
| Top Plate Size | 4" x 4-1/2" |
| Bolt Hole Spacing | 2-5/8" x 3-5/8" (Slotted to 3" x 3") |
| Swivel Radius | 6-1/4" inches (Increases with certain brake options) |
| Wheel Durometer | 90 SHORE D (±/-5) |
| Mounting Bolt Size | 3/8 inch |
| Overall Height | 9-1/2 inches |
| Bearing Type | Roller Bearing or Precision Bearing |
| Wheel Color | Black |
| Temperature Range | -50°F – 250°F |
| Caster Bracket Material | Zinc Plated Steel |
| Grease Zerk | Yes |
| Axle | Zerk Axle |
Key Features:
- High Load Capacity: Each caster can support up to 1000 lbs, making the entire set ideal for loads up to 4,000 lbs.
- Durable Phenolic Wheels: Known for their strength and floor protection, these wheels ensure smooth operation across various surfaces.
- Enhanced Mobility: Swivel design with brakes provides superior maneuverability and secure positioning.
- Versatile Application: Perfect for use with carts, trucks, dollies, racks, and equipment in industries like warehousing, hospitality, food service, and more.
- Robust Construction: Made from 1/4" thick cold rolled steel, designed to withstand the demands of medium-duty applications.
Additional Features:
- OEM Preferred Series: Widely recognized and trusted for exceptional performance.
- NSF Listed: Majority of this series and wheels comply with rigorous NSF standards.
- RoHS Compliant: Adheres to strict environmental and safety standards.
- Double Ball Raceway with 5/8” Kingbolt: Ensures smooth swiveling and enhanced durability.
- Matching Total Lock Casters Available: For complete mobility control and secure locking.
- Grease Fitting in Raceway & Axle: Simplifies maintenance and extends caster life.
- Zinc Plated: Offers excellent rust and corrosion resistance.
- Phenolic Wheel - Strong as Steel: Delivers robust performance and longevity.
- Non-Marking Wheel: Ensures no floor damage or marks during use.
- Chemical Resistance: Ideal for environments with exposure to various chemicals.
