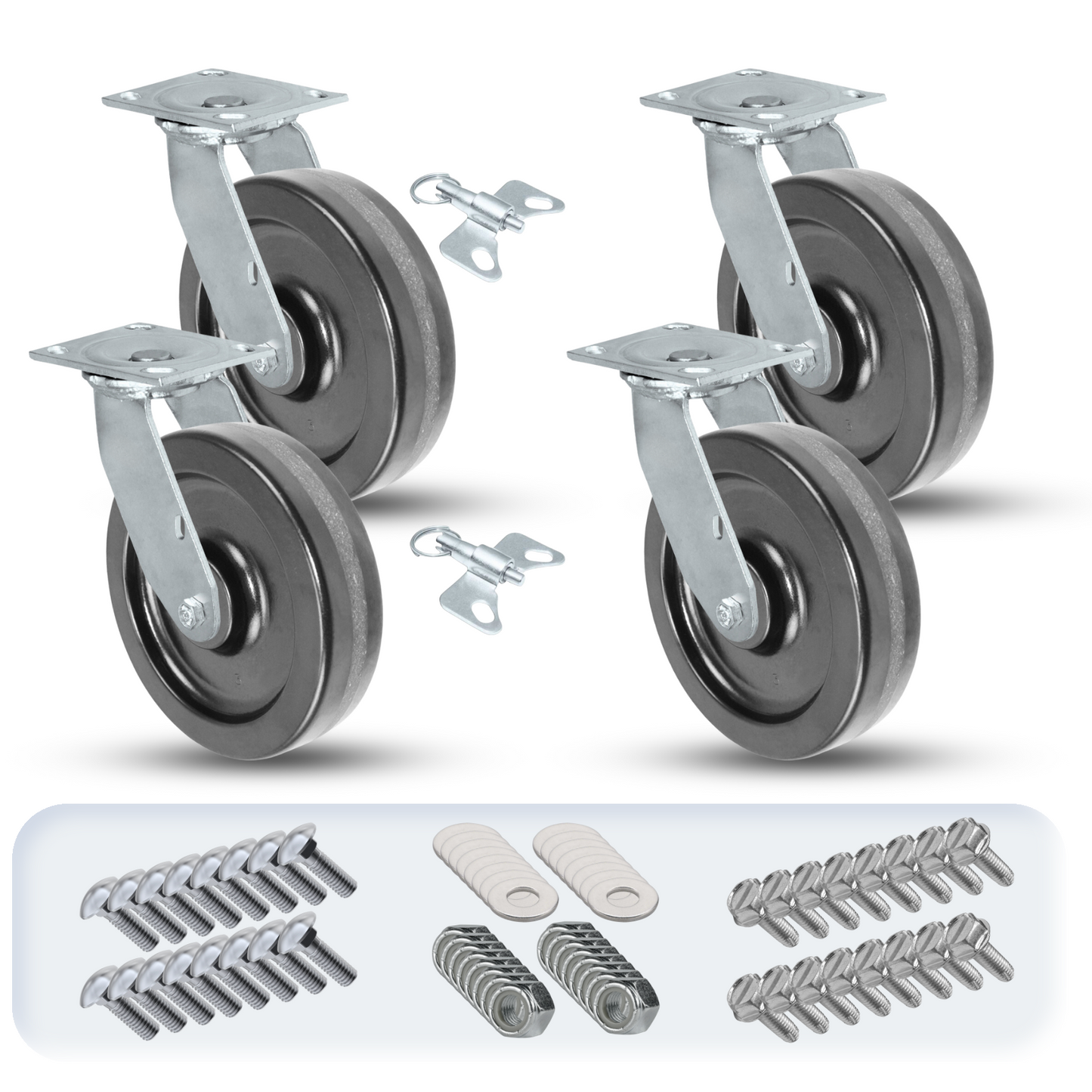

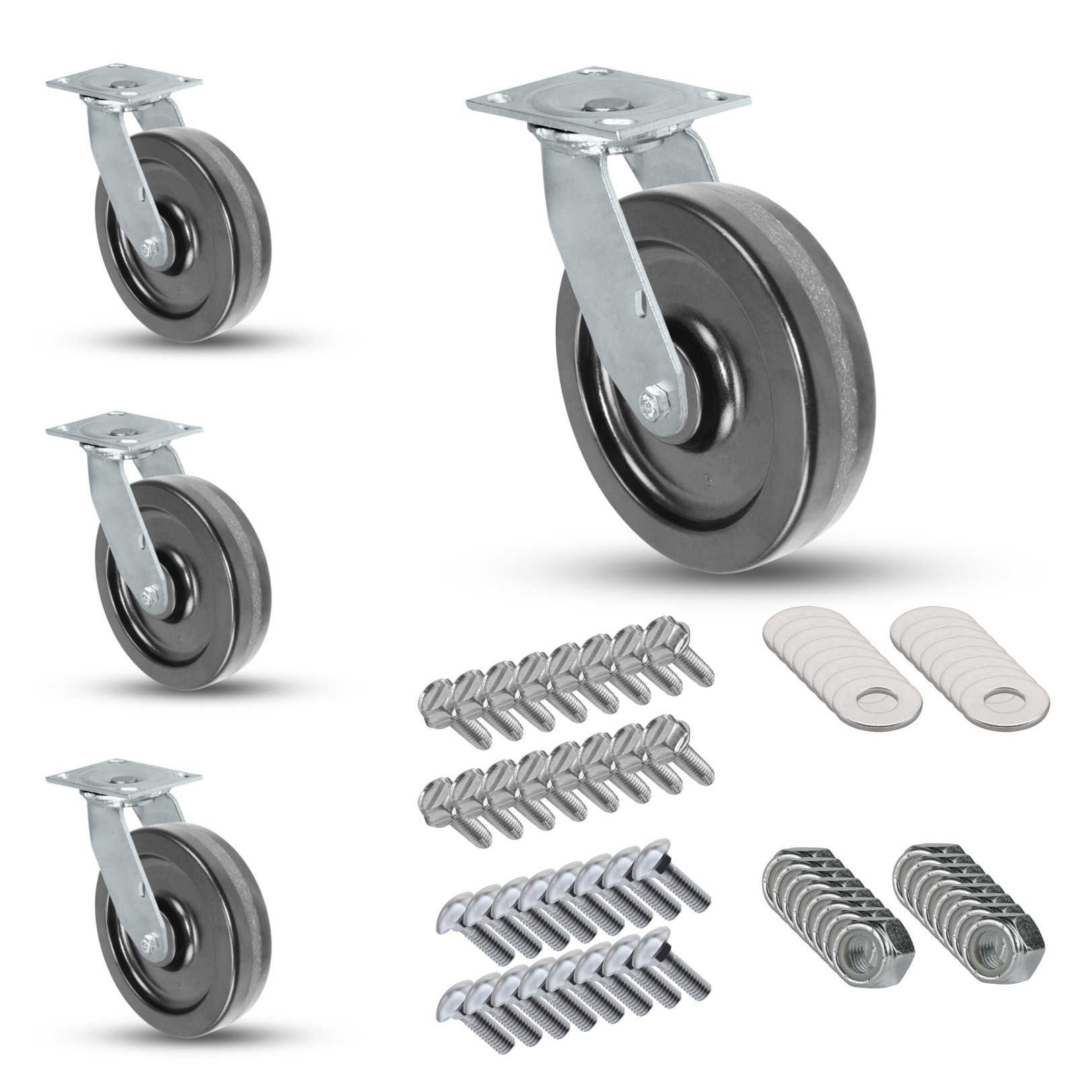

8" x 2" Swivel Caster Set of 4 - Phenolic Wheel - 4,000 Lbs Capacity
Introducing the robust and versatile 8-inch by 2-inch Swivel Caster Set from our acclaimed Medium Duty 'HD' Series. Ideal for a plethora of medium-duty applications, this set of four casters boasts an impressive 4,000 lbs total capacity, offering exceptional quality, functionality, and value. Experience rapid delivery and competitive pricing for all your industrial mobility needs.
Technical Specifications:
| Wheel Material | Phenolic |
|---|---|
| Wheel Diameter | 8 inches |
| Wheel Tread Width | 2 inches |
| Load Capacity | 1,000 lbs each | 4,000 lbs per set of 4 |
| Top Plate Size | 4" x 4-1/2" |
| Bolt Hole Spacing | 2-5/8" x 3-5/8" (Slotted to 3" x 3") |
| Swivel Radius | 6-1/4 inches (Increases with certain brake options) |
| Wheel Durometer | 90 SHORE D (±5) |
| Mounting Bolt Size | 3/8 inch |
| Overall Height | 9-1/2 inches |
| Bearing Type | Roller Bearing or Precision Bearing |
| Wheel Color | Black |
| Temperature Range | -50°F – 250°F |
| Caster Bracket Material | Zinc Plated Steel |
| Grease Zerk | Yes |
| Axle | Zerk Axle |
Product Overview:
- Wide Range of Applications: Perfect for carts, trucks, dollies, racks, and equipment in industries such as warehousing, hospitality, institutional settings, food service, food processing, and retail display.
- Durable Construction: Crafted from 1/4" thick cold-rolled steel, designed to withstand the demands and abuses typical in medium-duty environments.
- Enhanced Mobility: Equipped with double ball raceways and a 5/8" nut & king-pin for smooth operation and superior stability.
- Customizable: Available in standard, rivet kingpin, and kingpinless versions to meet diverse industrial requirements.
Key Features:
- High Weight Capacity: Each caster can bear up to 1,000 lbs, making the set ideal for handling heavy loads up to 4,000 lbs.
- Phenolic Wheels: Durable and designed for longevity, ensuring smooth transit across various surfaces.
- Swivel Design: Provides excellent maneuverability, ideal for navigating through tight spaces in busy environments.
- Quality Assured: Part of our best-selling Medium Duty 'HD' Series, recognized for its reliability and quality across multiple industries.
- OEM Preferred Series: Highly regarded and commonly selected by original equipment manufacturers.
- NSF Listed: Majority of this series and wheels adhere to NSF standards for safety and quality.
- RoHS Compliant: Manufactured with adherence to strict environmental and health standards.
- Double Ball Raceway with 5/8” Kingbolt: Enhances stability and ease of motion.
- Total Lock Casters Available: Offers the option for enhanced stability and immobility as needed.
- Grease Fitting in Raceway & Axle: Simplifies maintenance, prolonging the caster's
Product Code: HQ-2080-PL1-PHR-4S
