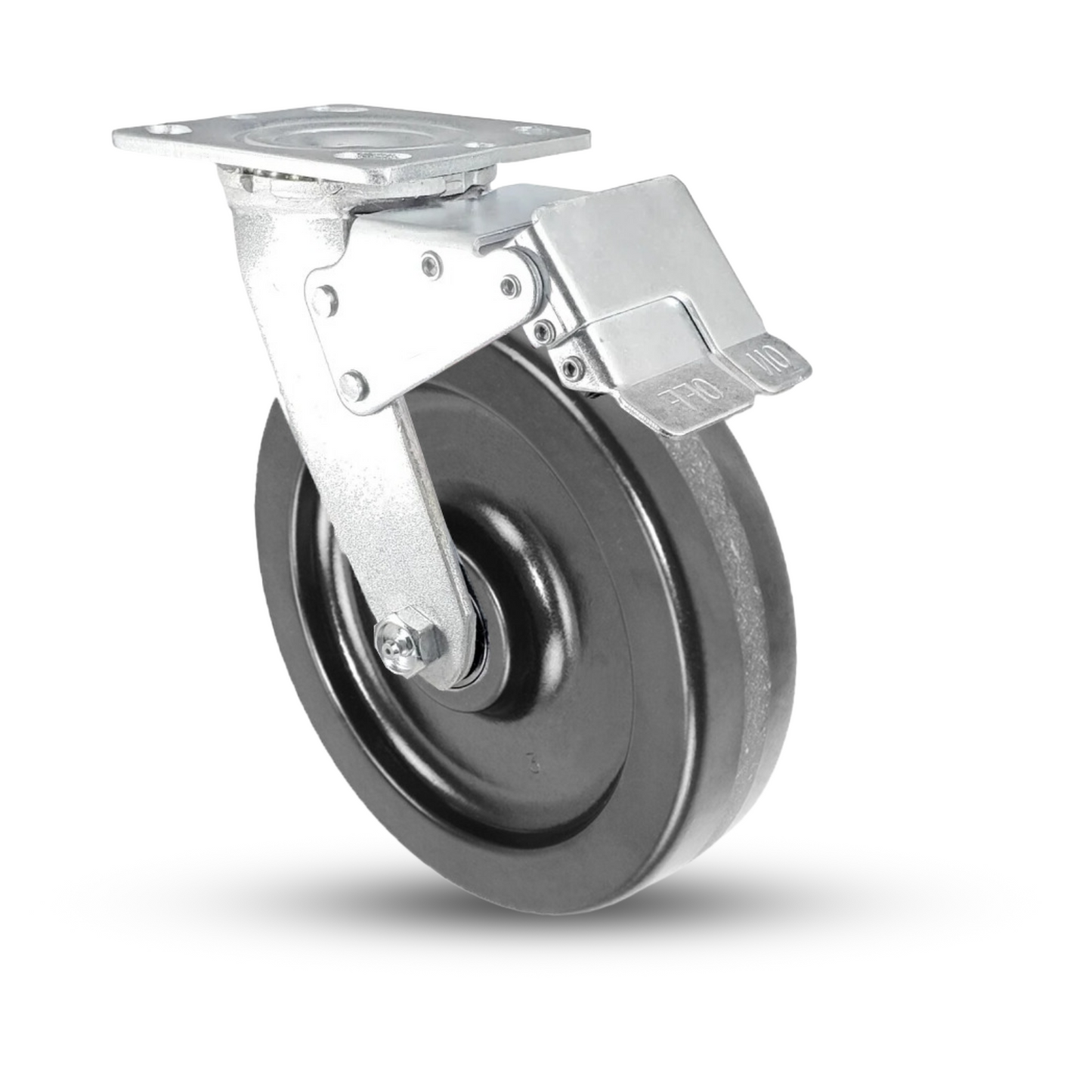

8" x 2" Phenolic Swivel Caster
8" x 2" Phenolic Swivel Caster
Regular price
$26.99 USD
Regular price
Sale price
$26.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
8" x 2" Swivel Caster | Phenolic Wheel | 1,250 Lbs Capacity
Introducing the Medium Duty '9' Series Swivel Casters, a top choice for professionals seeking quality, functionality, and value. These casters are bestsellers in various industries, known for their durability and adaptability in medium duty applications. Benefit from our quick delivery and competitive pricing to enhance your operations.
Product Specifications:
| Wheel Material | Phenolic |
|---|---|
| Wheel Diameter | 8 inches |
| Wheel Tread Width | 2 inches |
| Load Capacity | 1,250 lbs each |
| Top Plate Size | 4” x 4-1/2” |
| Bolt Hole Spacing | 2-5/8” x 3-5/8” (Slotted to 3” x 3”) |
| Swivel Radius | 6-1/4” inches (varies with brake options) |
| Wheel Durometer | 90 SHORE D (±5) |
| Mounting Bolt Size | 3/8 inch |
| Overall Height | 9-1/2 inches |
| Bearing Type | Roller Bearing (Other Options Available) |
| Wheel Color | Black |
| Temperature Range | -50°F – 250°F |
| Caster Bracket Material | Zinc Plated Steel |
| Grease Zerk | Yes |
| Axle | Zerk Axle |
Key Features:
- OEM Preferred Series: Trusted by Original Equipment Manufacturers for its robust quality.
- NSF Listed: Majority of this series and wheels meet NSF certification standards.
- RoHS Compliant: Adheres to stringent regulations on hazardous substances.
- Double Ball Raceway with 5/8” Kingbolt: Ensures smooth swiveling and increased load capacity.
- Matching Total Lock Casters Available: Offers added stability and locking capabilities.
- Grease Fitting in Raceway & Axle: Simplifies maintenance and extends caster lifespan.
- Zinc Plated: Provides rust and corrosion resistance for enhanced durability.
- Phenolic Wheel: Strong as steel yet non-marking, ideal for a variety of surfaces.
- High Resistance to Chemicals: Suitable for harsh environments.
Robust and Durable Design:
- Made from 1/4" thick cold rolled steel, meticulously crafted for optimal mobility and endurance in medium duty applications.
- Features Double Ball raceways and a 5/8" nut & king-pin for enhanced performance and durability. Optional rivet kingpin and kingpinless versions are available.
Versatile and Reliable:
Perfect for a range of medium duty applications in industrial, warehousing, hospitality, institutional, and food service sectors. Ideal for use with carts, trucks, dollies, racks, and various equipment.
Product Code: HQ2080S-PL1-PHR
